Warne produces some mighty fine optics mounts. Like many other quality-seeking shooters, I’ve trusted their products for years and have their MSR and tactical mount 1/2-inch hex nut torque specification engrained in my brain – 65-inch/pounds.

Adjusting a torque wrench to 65-inch/pounds isn’t typically a tiresome task; however, many wrenches like the Vortex Torque Wrench don’t stretch to 65-inch/pounds. The Wheeler F.A.T. wrench, another popular torque tool, has a limit of 65-inch/pounds so you’re moving the needle all the way out and back which, frankly, is anything but a good time.

Warne offers a nice reprieve from adjustable torque wrenches in the form of the TW65 Torque Wrench, a handheld wrench preset at 65-inch/pounds. Manufactured by California Torque Products on behalf of Warne, the 1/4-inch drive comes with a 1/2-inch socket and features electronic visual and auditory limit notifications.

The TW65’s handle is quite comfortable in the hand and easy to operate. The rubber coating provides additional grip support and doubles as an oil and chemical-resistant covering.

Removing the two screws closest one another (above, left side) allows removal of the battery tray which houses two CR2025 replaceable batteries.

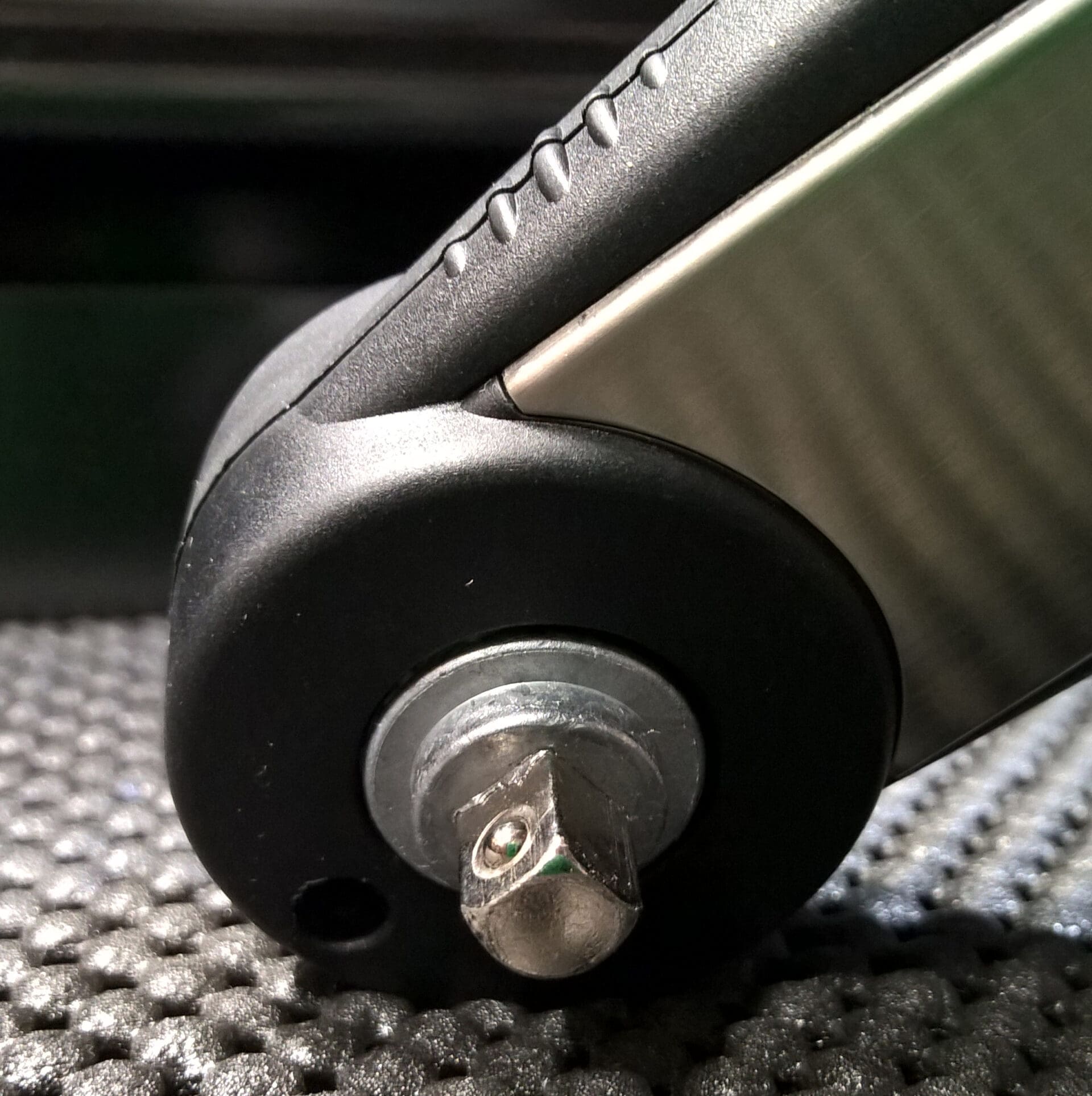

At the other end of the wrench sits a 1/4-inch square drive. It secures sockets very well, but is clearly made overseas.

The provided 1/2-inch socket can be swapped out to any 1/4-inch drive socket.

For instance, above, a 1/4″ drive 12mm socket is used to tighten a non-Warne scope mount with the same 65-inch/pound torque specification.

When the torque limit is met, the wrench rolls-over very smoothly and disengages itself from action with a “tactile click,” as they put it. Even with no (or dead) batteries, the wrench will still perform its function adequately.

With electrical power, however, the TW65’s red indicator light shines bright and a rather loud alarm sounds from within the wrench. I suppose some may find these electronic features helpful – especially if you need a sharp reminder to stop wrenching – but I’ve never had any issue feeling a torque wrench hit its limit and could do without the auditory reprimand.

The TW65 is approved for loosening hex nuts, as well. Simply apply force in the opposite direction until the nut is loose. No light or sound indication will be given when used in the reverse direction.

As accustomed as I am to Warne’s very high-quality, made in the USA optics mounts, the TW65 65-inch/pound Torque Wrench (made overseas) is a definite departure in quality. However, it gets the job done without issue and is backed by Warne’s lifetime warranty – that’s the life of the tool, no receipt necessary. The smooth roll-over as it reaches its torque limit is satisfying, but the ensuing shrill alarm is rather loud. The TW65 is a more-than-adequate lightweight solution to serve the needs of folks who often tighten 65-inch/pound scope mount screws.

Specifications: Warne TW65 Torque Wrench (1/4″ Drive, 65 in/lbs)

Price as reviewed: $59.99 MSRP ($48 shipped via Amazon)

Specifications:

  • Preset at 65 in/lbs.
  • 1/4″ drive
  • 1/2″ socket
  • Audible beep and red light when torque limit is met
  • Replaceable batteries (2 CR2025)
  • Oil resistant rubber coating
  • Warranty: Life of product

Ratings (out of five stars):

Design: * * * *
Warne’s TW65 1/4-inch drive 65-inch/pound electronic torque wrench is a less-expensive alternative to adjustable wrenches and is designed to tighten the 1/2-inch hex nut on Warne MSR and tactical mounts. Simply designed, it features a rubberized coating that resists oil and chemicals.

Quality: * * * *
Compared to Warne’ excellent optics mounts, the TW65 feels cheap. After all, Warne mounts are made in the USA and this plastic-shelled wrench is manufactured by an overseas OEM. That said, I’ve yet to encounter any issues with its performance or reliability.

Ease of Use: * * * *
Ergonomically, the TW65 feels good. It’s easy on the wrist and the textured handle and rubberized grip help to prevent slipping. The battery compartment requires the removal of two screws and a battery carrier. Absent batteries, the wrench still performs, just without the light and sound indicators.

Overall: * * * *
Designed specifically for Warne MSR and tactical mounts, the Warne TW65 is a reliably-performing, relatively inexpensive electronic torque wrench with a set torque limitation of 65-inch/pounds. Backed by a “life of the tool” warranty, this is a wrench any serious Warne mount user should consider for their tool chest or range bag.
