Des Moines, Iowa – (Ammoland.com)- Now that spring is upon us – really, it is! – shooters in the less temperate regions of the U.S. are dusting off their range bags, digging out the shootin’ irons, and heading out to the nearest range to brush up their skills. If you’re looking to improve your shooting, or just keep an accurate record of your and your guns’ performance, you need to know how to measure shot groups. The easiest and most commonly used method of measuring shot groups is the “center-to-center” method . . .
This means simply finding the distance between the centers of the bullet holes farthest apart on the target.

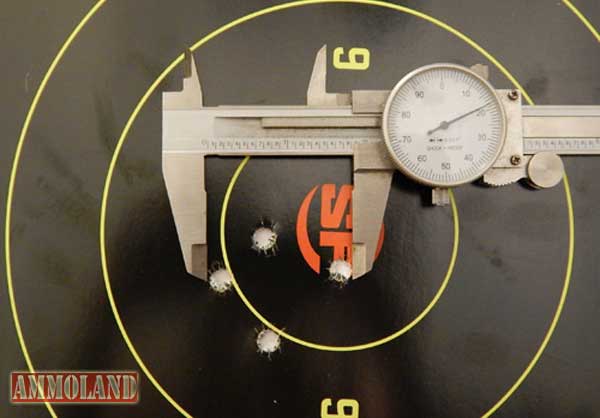

Finding the center-to-center measurement is done best with a caliper. Since we don’t usually require an ultra-precise, ten-thousandths-of-an-inch measurement for group size, an inexpensive caliper like the Lyman dial caliper (Brownells #539-832-212) is more than adequate for the job. If you don’t have a caliper though, a ruler that measures down to at least 1/16th of an inch will work just fine.
To begin finding group sizes, you must first know the diameter of the bullet you’re shooting. If you’re shooting a bullet designated in inches, like the .308 Winchester or .45 ACP, you’re already in business since the caliber is the diameter. If you’re shooting a metric bullet, like a 6mm or 9mm, you’ll need to do a little converting: 1 mm equals approximately 0.039″. So, for example, a 9mm bullet is about 0.35″ in diameter.
Once you know that, measure your group from the edges of the bullet holes farthest apart on your target. In the target at the top of this post, the calipers read 1.818″. This four shot group was made by a .308, so the next step is to subtract the bullet diameter from the group diameter. In this case we have 1.818 minus 0.308, which equals a group size of 1.51″, from the center of each of the farthest holes.
Here’s another example:
In this instance, the calipers measure 0.834″, and the bullet was a .308 again. So we have 0.834 minus 0.308, for a group size of 0.53 inches, center-to-center.
It’s as simple as that! Measuring your groups will help you evaluate your own shooting for the day, but to take the most advantage of group sizes, you should keep track of them over time to see if you’re getting better or if you need to change something – or to track a gun’s accuracy. To do that, you can use a log book, like one of the Brownells Modular Data Books. During each range session, simply write down the group sizes you shoot, along with the firearm and cartridge information, and your distance from the target.
The Brownells data book even has a place to draw a sketch of the group as it appears on your target so you can track points of impact versus points of aim in various conditions. Collected over time, this data can help you measure your performance, the accuracy of your firearms and cartridges, the life of your barrels, and it can even help you diagnose problems – a topic for a future article.
As the saying goes, knowledge is power. When you start measuring your groups and keeping track of them, you’re collecting the data you need to start squeezing every ounce of performance from yourself and your firearms.
Very informative. All I have right now is a 12gauge. 73 caliber?
If my “group” at 15 yds with a pocket pistol is smaller than my hand, I call it “good.” If I can do a mag dump shooting as fast as I can with the same gun and they are all within the outline of the target figure, I call it “f*ckin’ amazing.” That’s my “measuring” lesson for today.
This is often called “combat accuracy”. It is a compromise between speed and group size. If your group size is too small (less than 4 inches) then you should speed up your shooting. If it is bigger than 6 to 8 inches, then you should slow down. All of this assumes your group is centered on the center of the target. If not, then measure from the center of the target to the farthest bullet hole.
In a DGU situation, you need to get shots within center mass as fast as you can. Combat accuracy is good enough. In fact, it should be the goal of every gun owner who is training for self defense.
Please stop recommending dial calipers. It is a disservice to folks who have no need to learn the obsolescent skill of reading a dial caliper. A Harbor Freight digital caliper is a superior choice for anyone who doesn’t already own precision calipers.
And you can automatically do center-to-center measurements with a digital caliper:
1) Close the caliper completely
2) Zero the caliper (to make sure you are starting at zero when the caliper is closed; you should basically develop a habit of re-zeroing a digital caliper often to make sure that your measurements are accurate and not impacted by an accidental re-zeroing)
3) Open it to your bullet size (reading it directly in inches or millimeters; most digital calipers will do both)
4) Zero the caliper again without moving it from your bullet diameter setting (thereby creating a negative offset the diameter of your bullet)
5) Measure directly outside to outside across your group getting an accurate center-to-center distance
One of the many digital caliper tricks…
I thought everyone was using Vernier calipers these days.
I think it is silly to not learn how to use a non-digital caliper. Kinda like learning to drive an automatic car.
So I would say it is far from obsolete, is it obsolete to learn how to use a bolt action even though we have automatics?
10-4 on that! I have 4 pair of them.All Harbour freight. 4″ and severl 6″. The 4″ is a waste of money, too hard to read, and not any cheaper than the 6″. The last time I looked, they were only a sawbuck.
Oop’s, I thought he said Digital, not vernier.
Not everything needs to be digital and require a battery. Simple math and a good analog caliper still gets the job done.
Nonsense.
BTW he left out where you subtract the diameter of the bullet from the amount measured with the caliper via slide rule…
Oh sh*t!
You just started a caliper war…
See what I did there.
Or measure from the right side of one bullet to the right side of the other. That way you don’t have to worry about converting metric to English. It’s like measuring from center to center, but you don’t have to find the center.
Yes a nice quick easy method with no math.
Or hell, unless you’re Mr. Precision, just eyeball center to center, I doubt the most you’d be off is 0.1″
I was getting ready to say that, but, when you have a couple of holes overlapping, you must measure from the outside. When they don’t overlap though, that is a simpler way.
I fired 16 groups this morning at our small local range. First string I have fired out of the new Savage model 10 Precision carbine, with 20″ barrel, since I fire formed 100 new Lapua 223 cases last week.
I only fired 3 shot groups, since I had a lot of groups to shoot, all with a different combination of loadings, some with different bullet placement in the case, and different powder weight, all Hodgon 322, and Berger 52 grain flat base bullets.
I just use a scale with 10ths., and 100ths. The kind you would find in most machine shops, since I was not shooting in a match, and .005″ didn’t make any difference in this case.
All my groups were under 1.000″. Six groups were under .500, and 4 were under .375 The total average for 16 groups was .458″
So now I will load 5 shot groups of the best 3 shot groups, and go from there. I think this little carbine has potential
Oddly enough, I patterned some 00 Buck today.
I hadn’t done it in awhile, figured it was time to reconfirm the spread of the ol’ 12 gauge at various ranges with my HD ammo.
What system do we use to measure “Minute of Bad Guy?”
See my reply to a comment above.
Yes, but how do I convert to cubits?
If you are measuring your groups in cubits you need a bit more practice before measuring accuracy is an issue.
Alternatively, you could just pray to Yahweh for help hitting what you aim at, then group size is not an issue.
Since cubits are a rather imprecise measurement standard (from your elbow to your fingertip), there is no need to convert it. A good guess should be close enough in cubits.
How may Gobits in a cubit? Just asking.
Join the nbrsa learn about benchrest shooting from the pros and get a cool magazine and learn the truth about precision shooting
Rick, I’ll kook in to that. I used to subscribe to Precision Shooting magazine, until they went under in Nov. 2012. Now I take Varmint Hunter and just received a book from my friend Mic McPherson. The name is “Metallic Cartridge Handloading” (2013).The author is Mic McPherson. I would urge anybody who handloads to get this book!
Or simply use OnTarget Software — take a picture and let the software measure for you
http://www.ontargetshooting.com/download.html
Problem with calipers is they generally only go out to about 6 inches. I generally need a 25 ft. tape measure for my groups.
Honestly, I think measuring shot groups with precision instruments officially qualifies you as a measurebator. I’ll change my mind if I ever see hickok45 do it.
25′ tape measure to measure groups? Man you got to back up a bit. You can’t get decent group size shooting at 15′ like that.
Does the broad side of that barn have any holes in it?
No, he missed it.
Maybe if he’s shooting from the inside…
You should not subtract .308 if using a 308 win. You should subtract .30
Actually you should subtract .308 since that is the bullet diameter, if you use .303 or 7.62×54 you should subtract .310 or .311.
Now with .38 special you have to subtract .357 since that is the bullet diameter.
Yes the whole post is actually rather misleading because bullet diameters are not always the actual caliber size in standard calibers (.38, .303, .32, .300, etc etc) and are pretty much never the measurement in metric calibers (7.62xWhatever, 5.56). The metric designations almost always refer to the bore diameter — the distance between the lands whereas the bullets are typically sized to fill the distance between the grooves. A 7.62×39 bullet is 0.312″ (7.92mm) in diameter while 7.62mm converted to inches is 0.300″. Our pal the .308 Winchester AKA 7.62×51 is actually a 0.308″ diameter bullet but in millimeters that’s 7.82.
5.56 is actually 5.7mm in diameter.
Again, in a metric caliber the designation is bore diameter, not bullet diameter. In standard it’s usually bullet diameter but it very often is not, as in the examples above. .303 Brit is .311 and .38 is .357, .44 is actually .429etc…
Anyway 1) even if you eyeball center-to-center it won’t be any more off than assuming the diameter of a bullet when you’re wrong about it! and 2) measure inside edge of the hole on one side to outside edge of the hole on the other if you can’t eyeball the center accurately! This gives you the EXACT same measurement as center-to-center with no math and no eyeballing.
Good post. The only groups I truly obsess over are those I shoot from my custom build .308 precision rifle. Here is a ten round group I was able to achieve the second time I took the rifle out, shooting from the shoulder with a bipod. The first time, during a precision rifle class, I was able to put rounds on a steel torso target, 11 x 14, at 740 yards.
http://cyberbrethren.com/wp-content/uploads/2013/12/tenshotgroup1.jpg
Otherwise, obsessing over groups from an AR or AK or other rifle never designed or intended to be a precision rifle can be an excercise in endless futility and the cause of spending 1000s of bucks to try to turn a good, functioning assault rifle into a precision rifle. To each his own though. The thrill is in the hunt for that super-tight group.
In the real world if you can get rounds into an 8.5 x 10″ sheet of paper at 100 yards from your rifle you are good to go. Putting multiple rounds into the same basic wound channel on a human being is NOT what you want to do to begin with in a gun fight. The goal is to poke as many holes as possible, as quickly and accurately as possible, into a bad guy’s hydraulic and/or electrical system, creating as many wound channels as possible, causing the greatest possible and fastest loss of blood you can. Sorry to be so graphic about it.
If you put holes in a target while moving and drilling and can cover them with your hand, that’s more than good enough.
If you want really precise and accurate groups, just go for a precision rifle with a good scope, good trigger, etc.
Paul’s contribution here parallels my thoughts pretty well. Seriously I don’t know what’s more pathetic, a blog post about how to measure shot groups with precision instruments, or people arguing in the comments section about how to measure shot groups with precision instruments. Don’t forget that paper expands and contracts with moisture and humidity, so you’ll need to do that in a laboratory with a controlled atmosphere.
Every forum should have a special section for measurebators. You’re more than welcome to borrow my digital calipers, but please pass me another box of ammo first. You can measure, record, put it all in a spreadsheet and do a regression analysis. I’ll be practicing, training, learning and having fun.
I always measure outer edge to inner edge of the 2 furthest apart holes. Easy to see/feel compared to the empty space of center of hole.
Yep, no conversion or math necessary that way.
Also, the way the article is written would have you believe that the bullet diameter of a .38spl is 0.38, or .44mag is 0.44. This is not true at all. ”Pro” tip indeed.
Is that difference truly significant? Most likely not. In fact, leaving sig figs to 0.1″ is prolly just fine given eyeballing the hole and tears.
Dont sell your self short by shooting any thing less than a 5 round group. Most times people do really good with their first few shots it is not until later in a grouping (+5) shots when ones start getting sloppy with their fundamentals. Besides if you shoot only a 3 round group and one is a flyer guess what that means. Here is some more info
http://forum.snipershide.com/range-report-exterior-ballistics/206407-shot-groups-3-5-10-rounds.html
I agree with your post. 3 shot groups are not the way to go, unless, you are shooting a new rifle, and are on a budget. There are so many variables involved when trying to find a load that will shoot respectfully in your gun, bullet weight, and style, powder type, and weight. primer selection, neck tension, and seating depth. I probably left out a few.
When I shot my 16, 3 shot groups, I was just trying to get an idea of what might work, and what probably wouldn’t. If your three shot group, from a precision rifle is 1 1/2″ center to center, you know that it not worth the trouble to develop this particular combination any further. Two more shots in this group are not going to make it any better.
If you get say, four or five good groups, then you can elaborate on these, and shoot 5 shot groups, for further development.
Of course, if you have the time and money, then you can start right off shooting 5 shot groups, but for a lot of us, that is not always the case.
I dont shoot groups to check my accuracy. I shoot groups to check ammo and gun/barrel accuracy. I will take my 3 shot groups via my caldwell lead sled dft over the American Riflemans 5 shot groups via sandbags anyday.
Good primer on measuring groups. Just an FYI when the goal is measuring how close you get to stuff, bullseye competition has refined it to an art. Use of “scoring gauges” takes precision to the Nth degree. Here is a great article from none other than Gary Anderson over at the CMP on how to use them properly….
http://www.odcmp.org/0108/default.asp?page=SCORINGGAUGES
If I may point out the reasons for measuring groups. It can be to determine the accuracy of a given firearm with a certain load. If the accuracy of the load is known it can be used to see if your ability or the ability of the firearm has changed. It can be used to compare the accuracy of different ammo and different techniques in shooting styles.
If you want to improve your shooting ability having a baseline for the ammo you are practicing with is necessary so you can gauge your improvement or lack of.
In practical pistol shooting whether for competition or for self defense to think that speeding up or slowing down is a good way to adjust your groups to whatever size you think will do the job is folly. When groups open up it means you are less in control, we are responsible for every round that leaves our guns and should never sacrifice control for speed. Speed is a good thing but it comes from the skill of controlling your firearm at a higher rate of fire.
The recent video of the policeman firing a 6 shot burst at an old man who reached for his walking cane is a graphic example. Six rounds fired with one hit. Unfortunately many think this is a good strategy, fire a bunch of bullets and one of them may hit, if not it will at least suppress them. Suppressive fire has no place in a civilian self defense situation and would be a damn rare LE situation.
Paul needs to remember that semiautomatic rifles are sporting rifles not assault rifles. To his credit he called his modern bolt action rifle a precision rifle not a sniper rifle.
I would call it a mulligan if he didn’t get the second one right.
Classifying a sporting rifle as not accurate or capable of precision is inaccurate. Many many people have sporting rifles that are sub moan guns, by design or by the quality of the manufacturers design and parts.
That doesn’t always equate to cubic yards of cash.
I would also add that the calipers should be held (unlike the lead-in pic) parallel to the line between the two farthest bullet holes, and not level with the ground – otherwise you are cheating, hehe.
That may be the way they measure it in competitions or developing handloads or something but for practical real-life shooting I don’t do it that way at all.
Groups are measured outside edge to outside edge, because the edge of the bullet is still bullet. It’s not just the middle part that’s a bullet and the rest you get to ignore.
You also should shoot 10-shot groups to really know what’s going on. Things act differently after the barrel heats up but aside from that unless you’re shooting bullets designed for rifling through an oversized smooth bore or something the biggest variable is always the human.
10 shots gives you enough to measure yourself (the biggest variable) along with the weapon.
There’s also no such thing as a “flyer”. It doesn’t exist. Some might blame the tools, others might admit they just goofed up the shot, but the point isn’t how it happened, just that it happened. It’s a shot, you fired it, and it’s part of your group. If you put 9 within an inch and one 5″ off you still shot a 6 inch group.
Not to be an absolutist yes those other ways of doing it do have merit for judging the inherent accuracy of a particular weapon and load combination or scoring competition targets, etc. Just saying for more practical purposes a lot of that goes out the window and you sure as hell don’t need calipers, digital, analog, or any other type (lasers???) to figure it out.
If you can keep all your shots on a torso target while you’re running around scared shitless or just absolutely stunned that your life or what’s left of it is not what it was 2 seconds ago you are one hell of a good defensive/combat type shooter, at least out to however far you can do that.
I’m not all that confident even Johnnie Cochran could get you off for using suppressive fire as a civilian.
If you want to know what your effective (ethical) hunting range is it’s however far you can keep all your shots, including so-called “flyers”, in that 6 inch group from some improvised field position while you’re cold, wet, and miserable, or ungodly hot with the sweat stinging your eyes and the wind feels like someone is holding a hair dryer to your face, etc.
Nice day you’re good for farther. Not so nice day back it up.
I don’t buy the “minute of pie plate” theory either. 6 inches allows for some of that human variable that will open it up to pie plate size. Start with a pie plate you’ll end up with a pizza box, and some very cruelly and needlessly injured critters.
